YM-AC800R / YM-AC1000R Resistive Load Bank

Technical Data

Specifications

Technical Specifications

Capacity Range	1kW-800kW / 1000kW
Rated Voltage	380V/400V/440V/480V/690
Frequency	50HZ / 60HZ/400HZ
Power Factor	1.0 (Unity — Pure Resistive)
Load Step Resolution	As low as 1kW
Control Modes	Manual Panel / Remote Control / PC Software
Communication	RS485 / USB / Bluetooth
Cooling Method	Forced Air Cooling (Axial Fan)
Hot Air Discharge	Horizontal or Vertical (optional)

Physical & Environmental

Dimensions (L×W×H)	1820 x 1500 x 1960mm (72 x 59 x 77in)
Weight	1300Kgs
Cabinet Material	Corrosion-Resistant Cold-Rolled Steel Plate
Protection Class	IP20 (Outdoor use)
Operating Temp.	0°C to +45°C
Storage Temp.	-25°C to +60°C
Relative Humidity	≤ 90% RH (non-condensing)
Altitude	≤ 2000m (derate above 1000m)
Warranty	1 Year Full Unit + Element Warranty

Product

Description

These two high-power intelligent resistive load banks are outdoor air-cooled test equipment for heavy-duty industrial testing and maintenance of Large Gensets, UPS, Energy Storage Systems, Ground Power Units, Wind Generators, Hydro Generators etc.

Adopting modular alloy resistance modules with PF=1.0, they support flexible multi-step loading from 1kW to full rated power, compatible with 3P3W / 3P4W and global 400V/480V 50/60Hz power systems. Standard top exhaust cooling is equipped, while horizontal parallel air discharge can be customized as required.

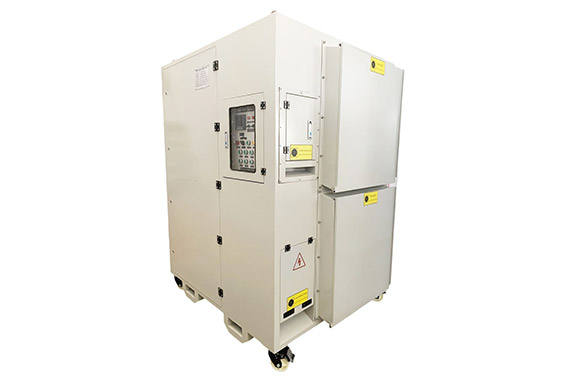

Both models can be fitted with four heavy-duty casters for easy on-site movement. The 800kW unit weighs around 1000kg, and the 1000kW model weighs approximately 1300kg with enhanced internal heat dissipation components for continuous high-power operation.

Equipped with complete multi-protection systems including over-temperature, over-current, short-circuit and emergency stop, they support local touch panel operation and remote PC control. All units have CE certification, and customized voltage, load steps and cabinet structures are available.

Product

Main Features

High Continuous Loading Performance

It maintains stable full-load operation at unity power factor for extended hours, perfectly suited for acceptance testing and commissioning of large generators, power stations and data center backup power systems.

Precise & Stable Load Output

Adopting pure resistive design to deliver linear power consumption. Load output stays consistent, producing accurate and repeatable test data for power system validation.

High-Efficiency Forced Air Cooling

Large airflow forced air cooling system with optimized duct layout rapidly removes accumulated heat, preventing overheating during prolonged high-power testing cycles.

Comprehensive Multi-Protection System

Integrated multi-layer protection including overtemperature, overcurrent, short-circuit and fan failure protection, plus emergency stop button to safeguard equipment and operators.

Heavy-Duty Reinforced Frame

Constructed with thickened cold-rolled steel plates that processed by glavanizing corrosion protection. Robust anti-vibration frame withstands rough transportation and tough outdoor & industrial site conditions.

High-Quality Resistance Elements

Premium alloy resistor elements feature low temperature drift and excellent thermal stability. They retain consistent performance after numerous repeated load cycles with long service life.

Mobile & Flexible Placement

Fitted with heavy-duty lockable casters. Easy to move, position and fix on-site for temporary power test projects at different locations.

User-Friendly Control Interface

Equipped with intuitive control panel for real-time power monitoring and stepwise load adjustment. Operators can conveniently view running status and test parameters.

Custom Configurations Available

Customizable on voltage grades, load segmentation, control methods and additional accessories to match unique specifications of various industrial power projects.
